Products Detail

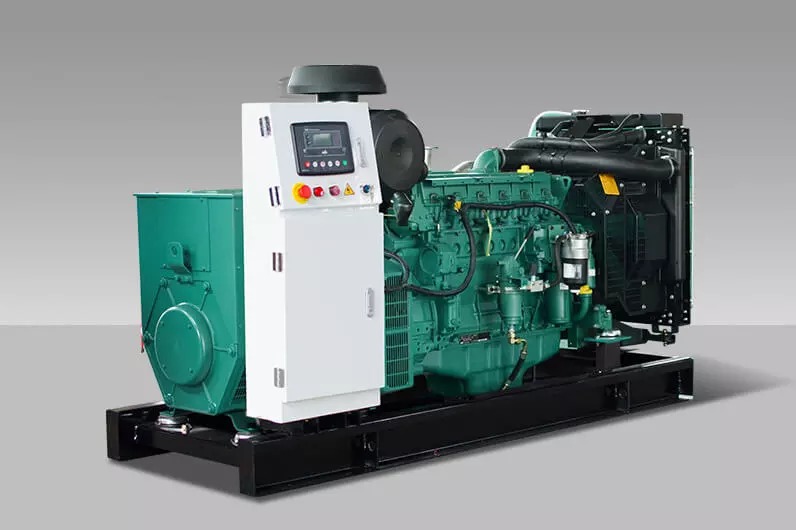

  • Brand: Volvo
  • Model:TAD1641GE
  • Alternator Brand: Leroy Somer
  • Standby Power (kVa/kw): 550/440

OUTPUT VALUES

Standby Power Voltage 230/400
Standby Power kVA 550
Standby Power kW 440
Standby Power Amper 794
Prime Power Voltage 230/400
Prime Power kVA 500
Prime Power kW 400
Prime Power Amper 722

DIMENSIONS & WEIGHT

Without Canopy Width 1500 mm
Without Canopy Length 3000 mm
Without Canopy High 1900 mm
Without Canopy Weight 3300 kg
Without Canopy Fuel Tank Capacity 550 lt
With Canopy Width 1500 mm
With Canopy Length 3500 mm
With Canopy High 2450 mm
With Canopy Weight 4000 kg
With Canopy Fuel Tank Capacity 550 lt

ALTERNATOR INFORMATIONS

Standby Power (kVa/kw) 550/440
Prime Power (kVa/kw) 500/400
Brand Leroy Somer
Output Voltage (V) 230/400
Frequency (Hz) 50
Stationary Vol. Regulation(±) 0,01
Short Circuit Current %300 (10 sec)
Insulation H
Protection IP23
E ciency (%) 88
Overloading 110% for 1 hour
Power Factor (cos Q=0.8) 0,8
Tot. Harmonic Dist. Rate <1 %
Connection Type Star
Number of Pole 4
Number of Bearing Single

DIESEL ENGINE

Brand Volvo
Model TAD1641GE
Max. Total Output Pow. (kWm/hp) 473/643
Cylinder Displacement (lt) 16.12
Cylinder Orientation 6 Single Line
Bore x Stroke(mm*mm) 144 x 165
Compression Ratio 16.5
Governor Type Electronic
Rotation 1500 RPM
Aspiration System Turbo CAC
Injection Direct
Cooling System Water Cooled
Electrical System(V DC) 24
Oil Capacity (lt) 42
Engine Coolant Capacity (lt) 60
Fuel Cons. %50 (lt/h) 55
Fuel Cons. %75 (lt/h) 81
Fuel Cons. %100 (lt/h) 110
